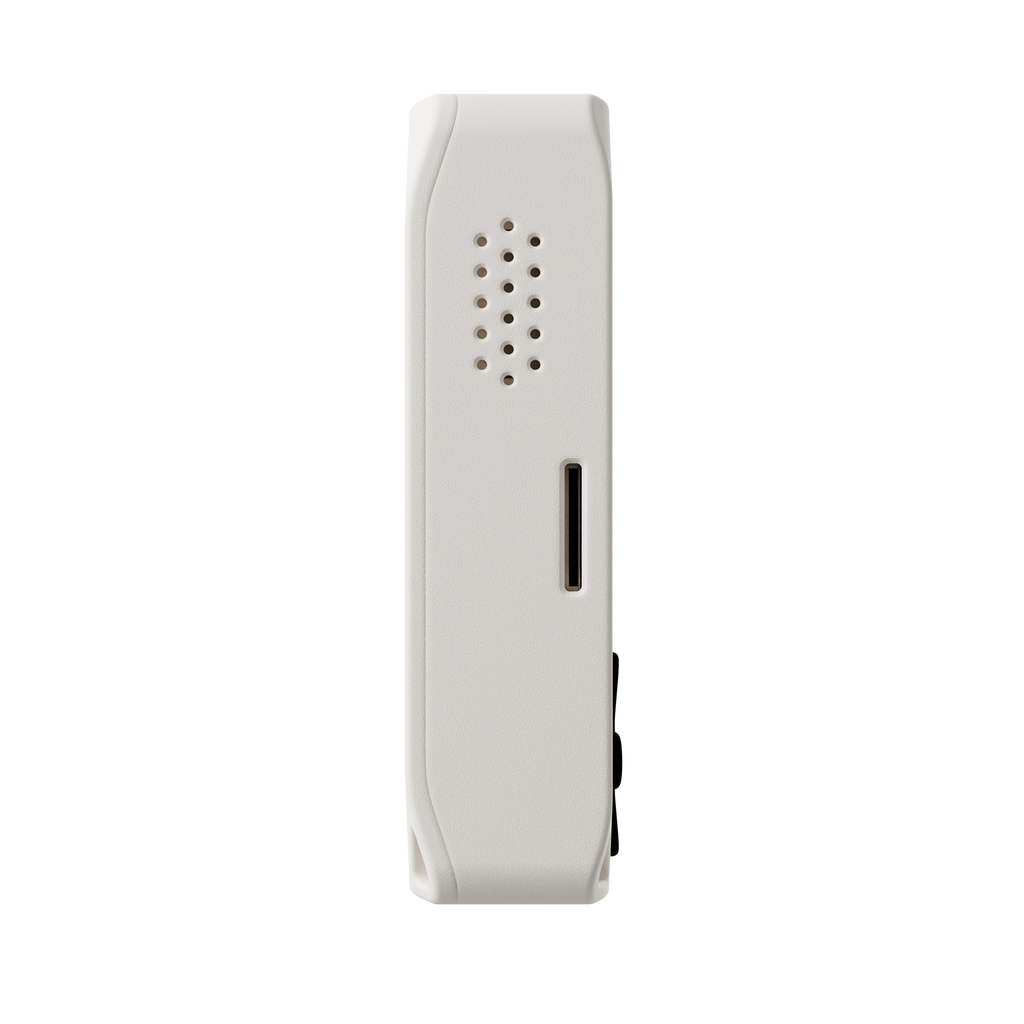

Kode Dot

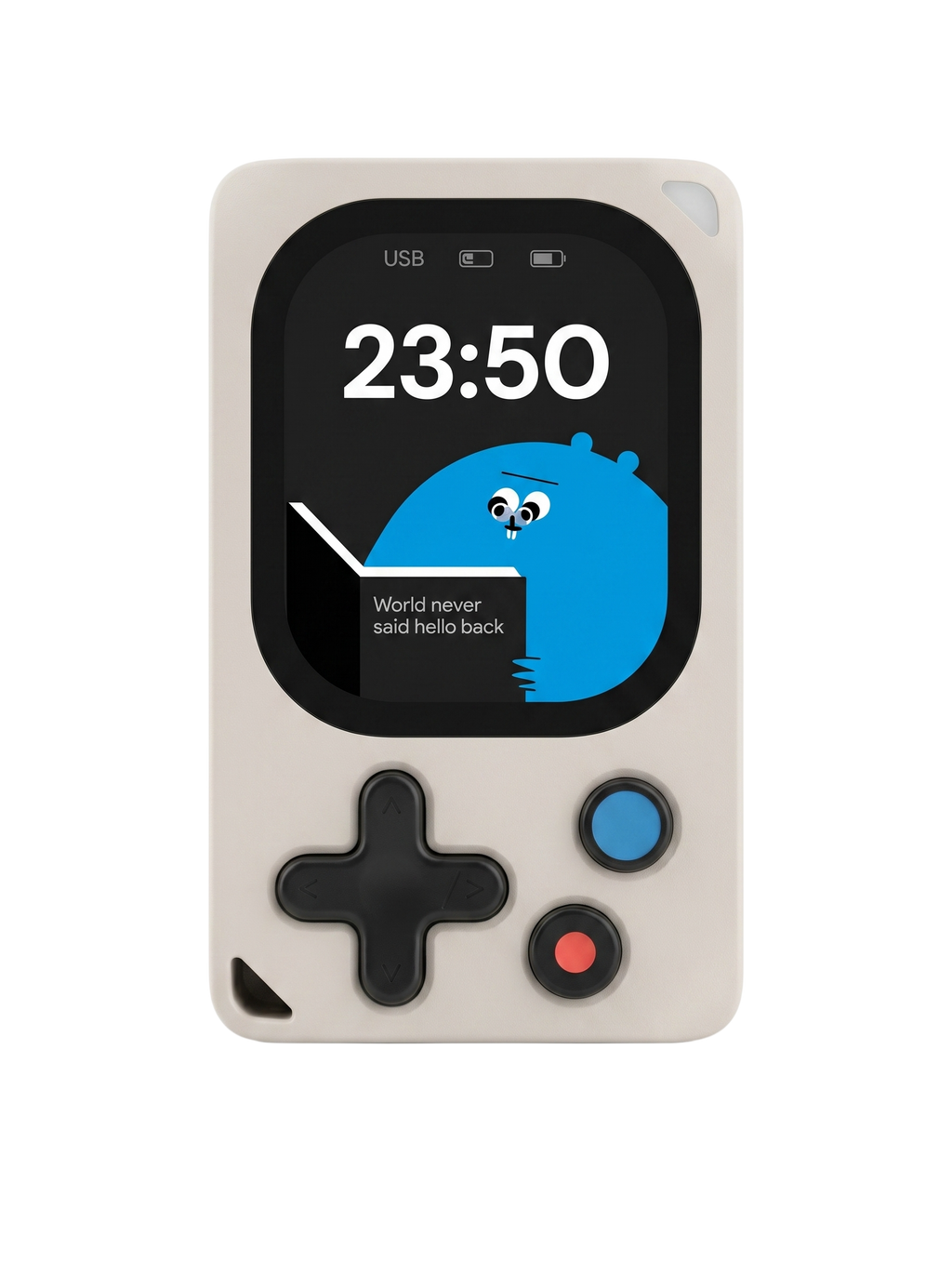

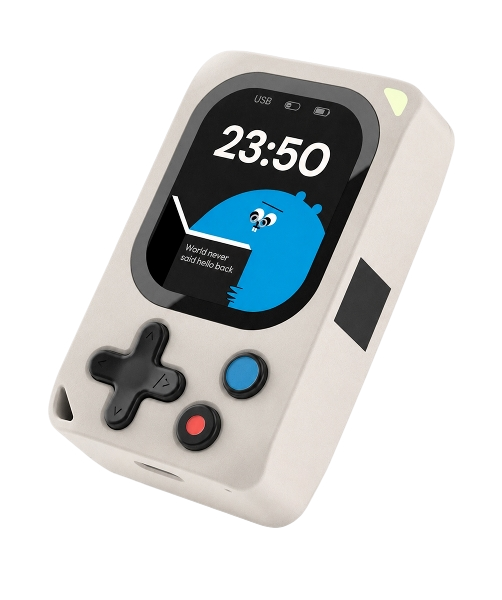

Kode Dot is a programmable pocket device for makers, pentesters and geeks, and what it does is entirely up to you. All the hardware is already built in: ESP32-P4 + C5, an AMOLED touchscreen, wireless, sensors and real I/O in something that fits in your hand. You write the code, and it becomes whatever you need. A robot brain, a radio analisys multi-tool, a sensor logger, a handheld game, a universal remote, an event badge. One device, endless projects.

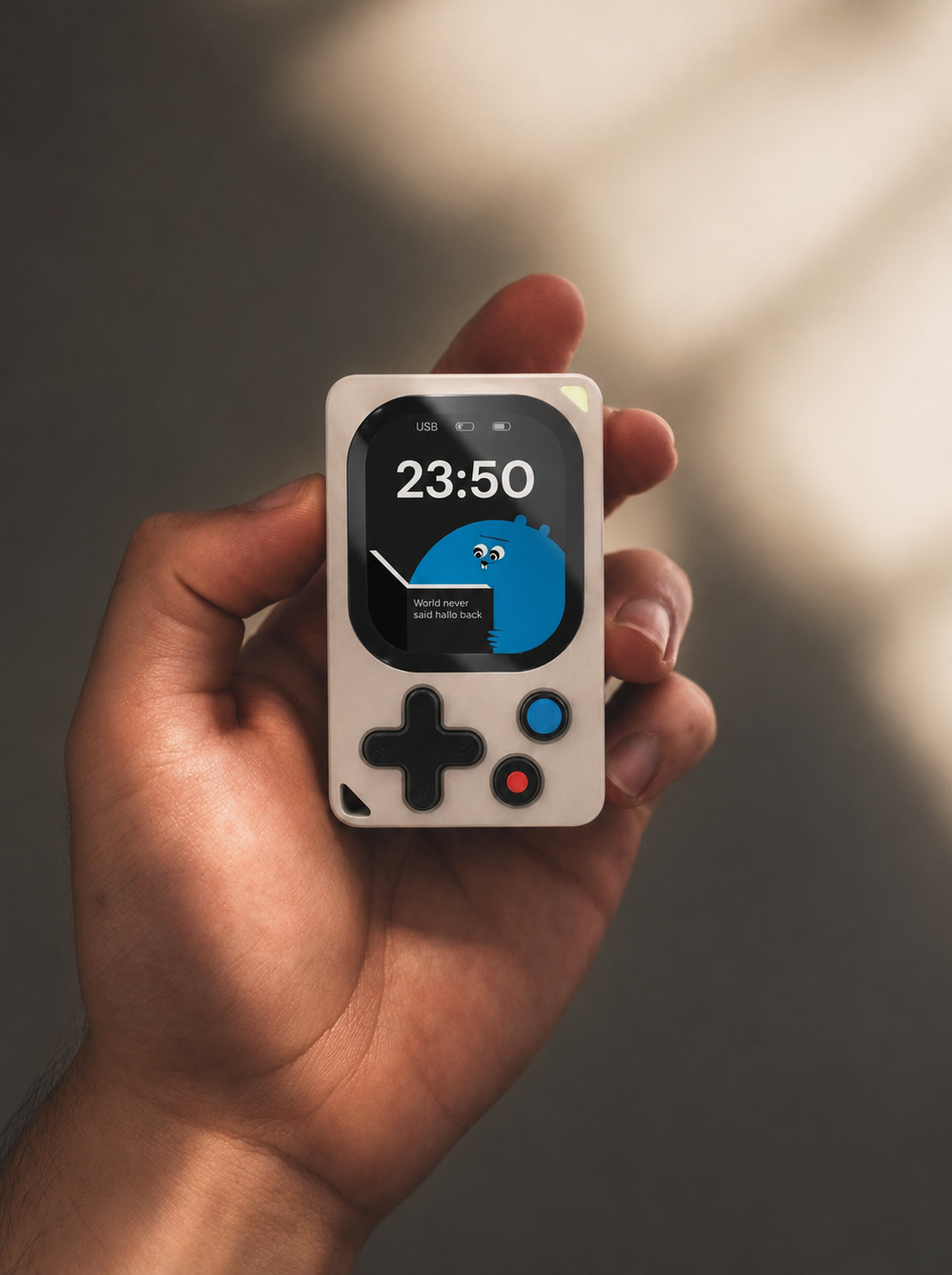

It's as easy to program as an Arduino, but it's a finished, portable device with its own screen and battery, so your project lives in your pocket instead of tangled on a breadboard. Plug in wires, snap on a module, and build straight from your Kode Dot.

Everything runs on KodeOS, which turns your code into apps you can launch anytime, like on a maker phone. Keep many projects on the device at once and switch between them with no re-flashing. Program it with the tools you already know: Arduino, PlatformIO, ESP-IDF, and more!

Key specs:

• Processor: ESP32-P4 with ESP32-C5 wireless co-processor

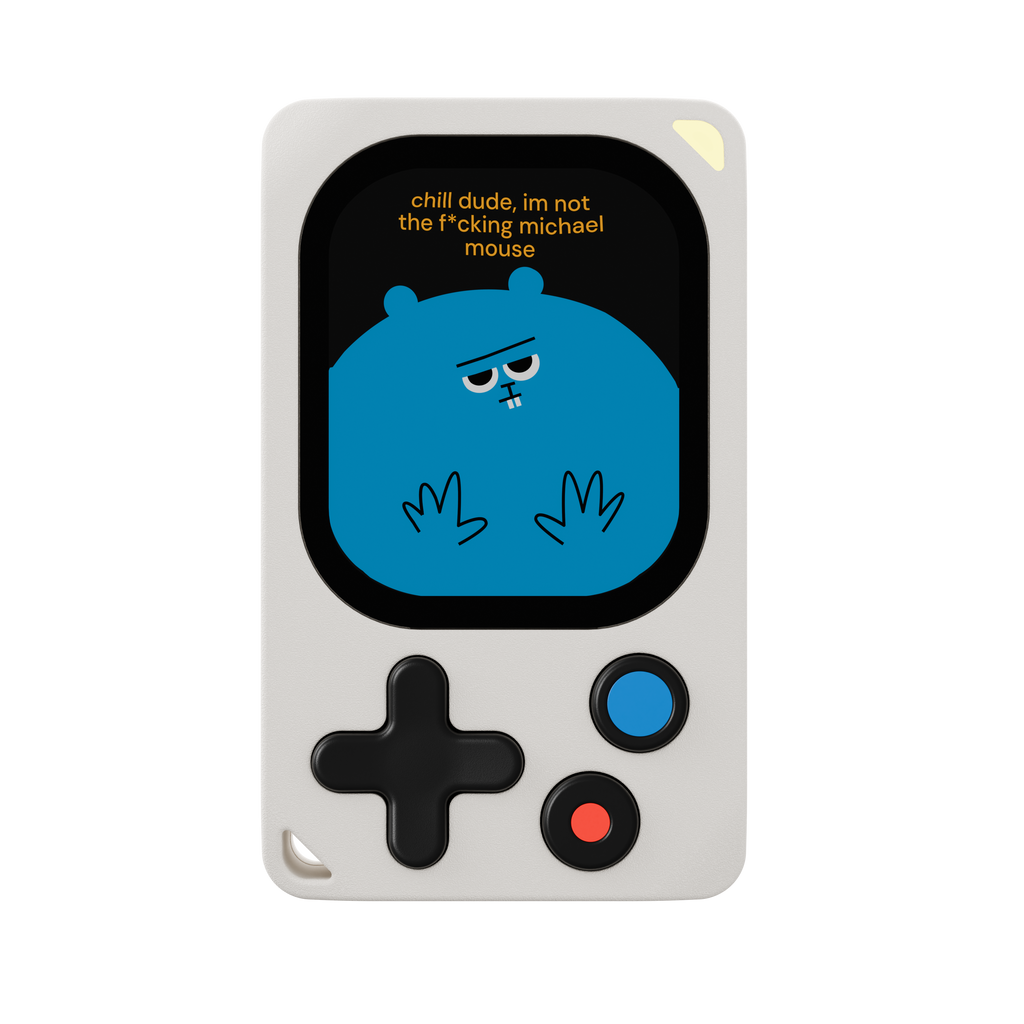

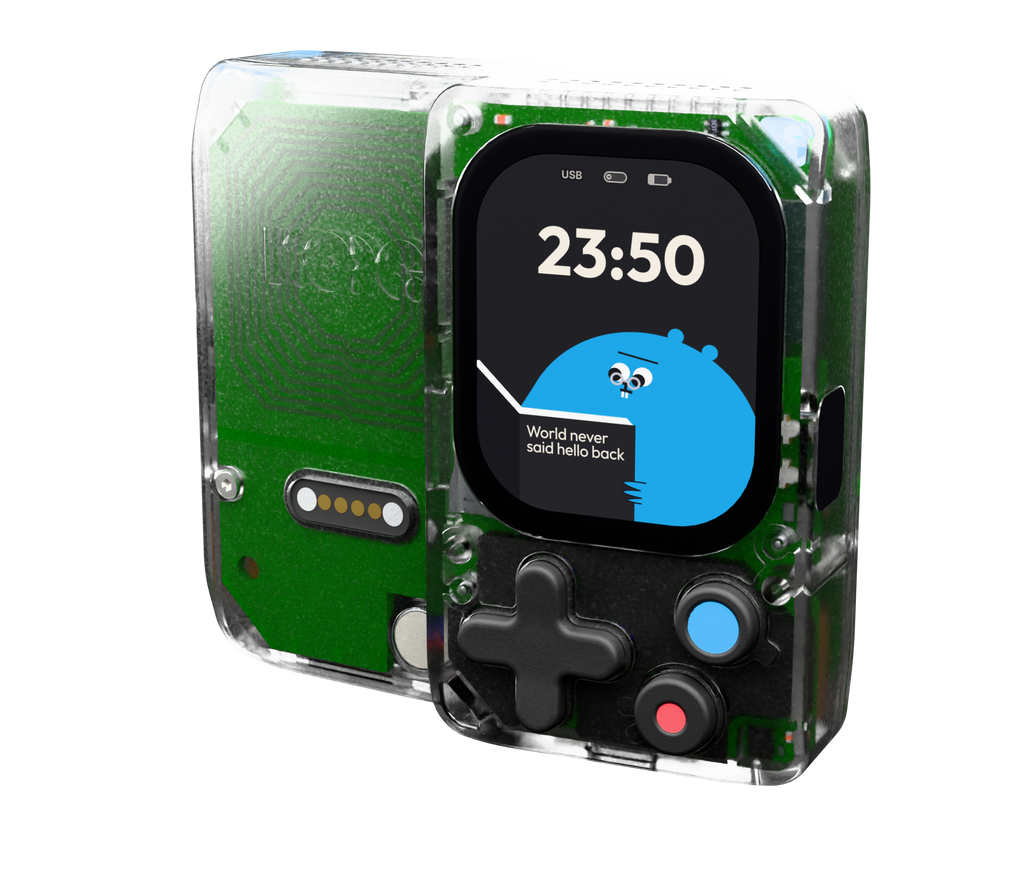

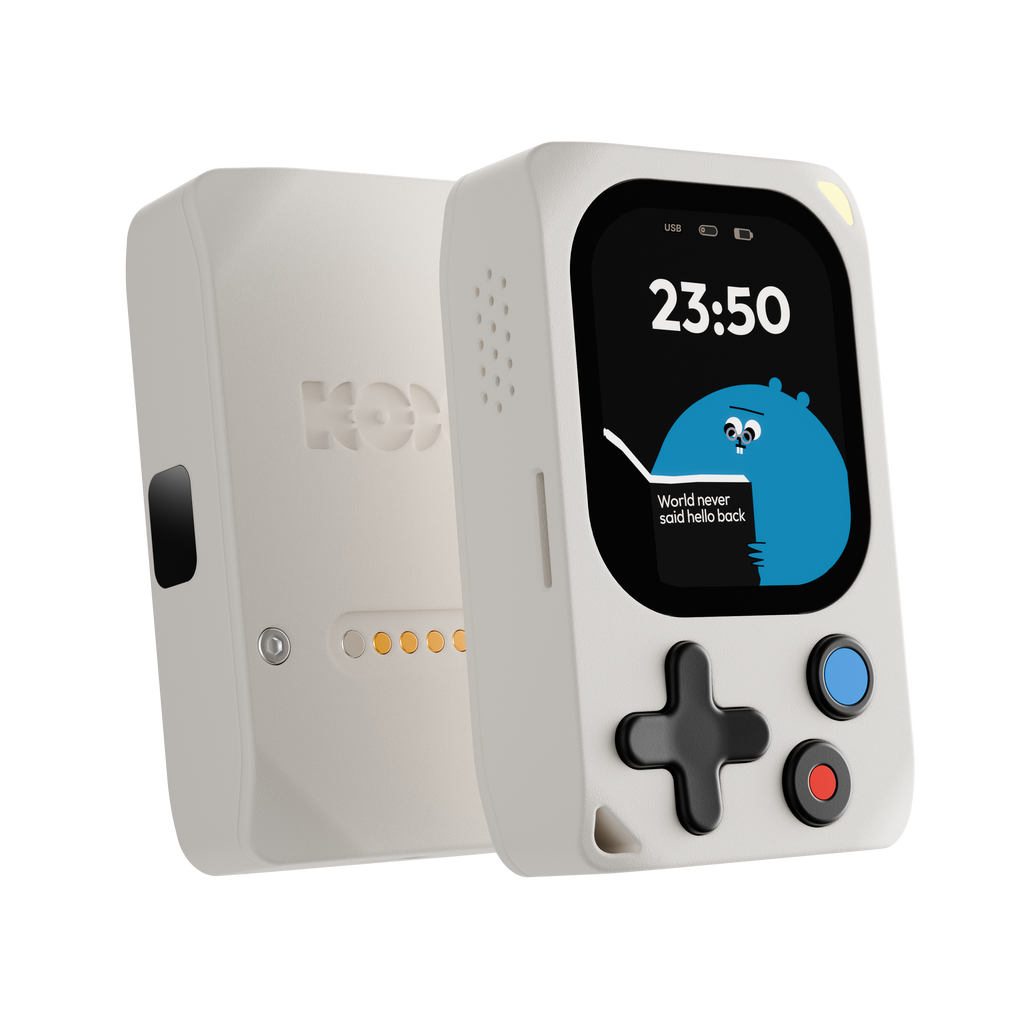

• 2.13" AMOLED touchscreen

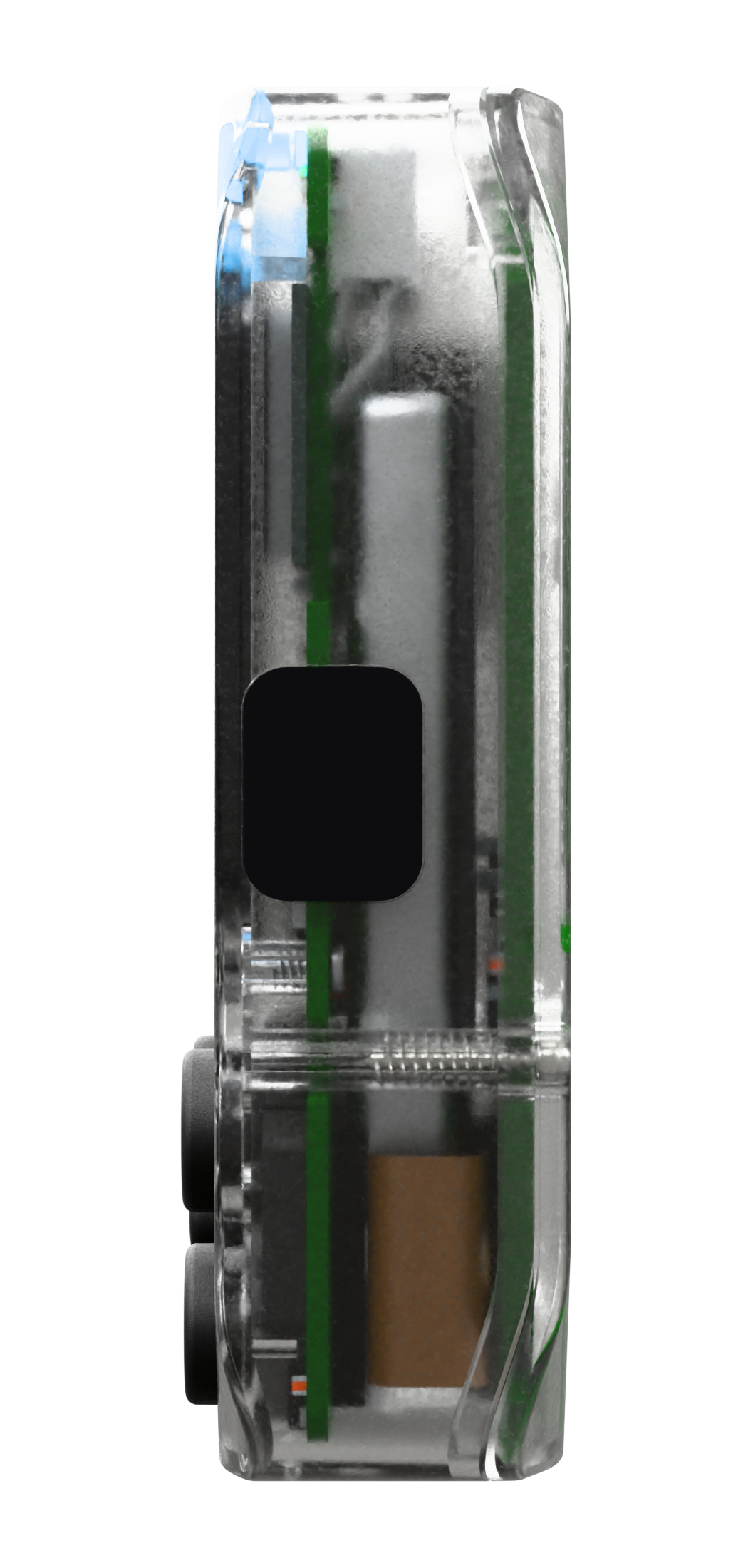

• Directional pad and two control buttons

• Wi-Fi dual-band 2.4 and 5 GHz, Bluetooth LE 5, Thread, Zigbee
• NFC 13.56 MHz (read and emulate) plus RFID 125 kHz
• Infrared transmitter and receiver

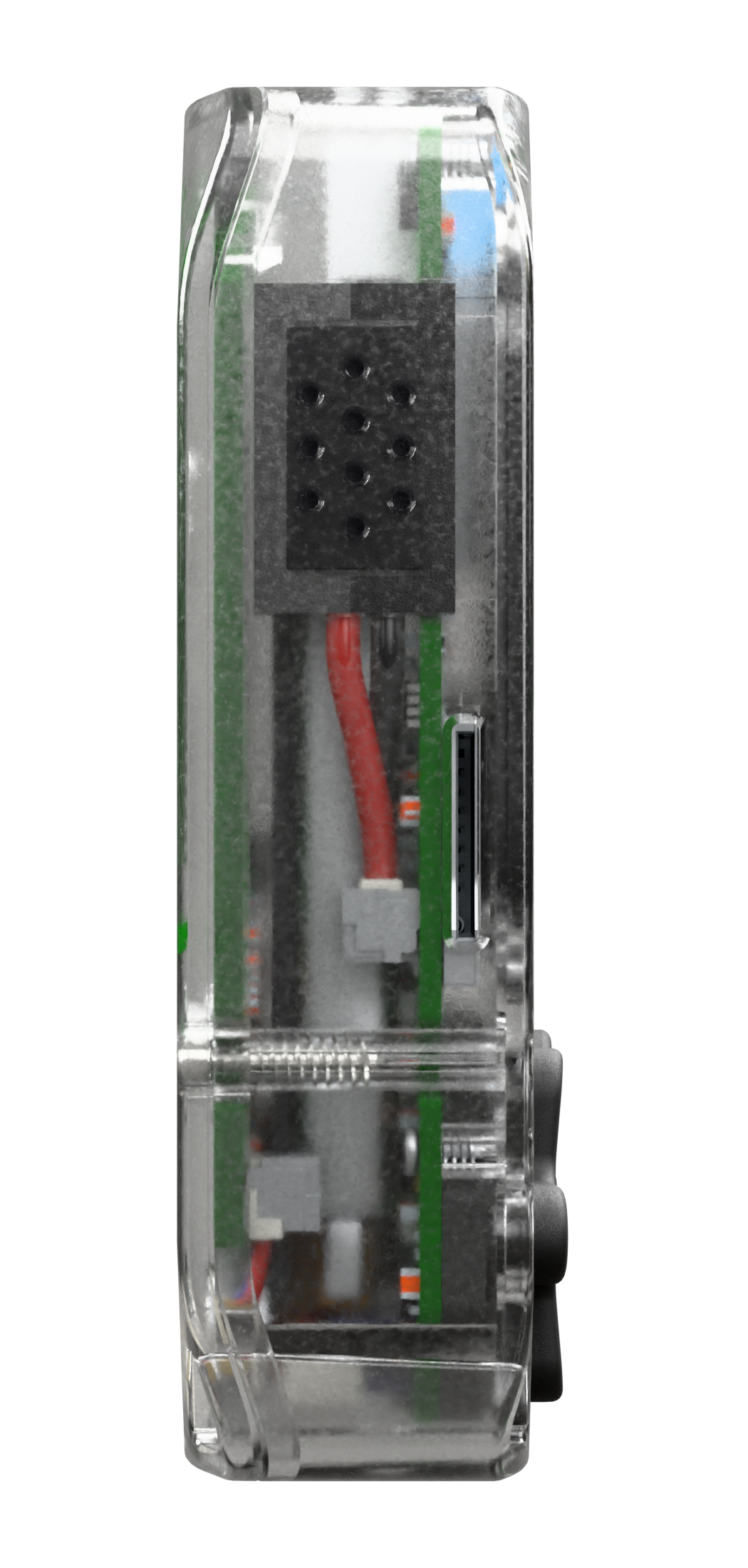

• Built-in speaker and microphone
• Motion sensor (9-axis IMU)
• Haptic vibration motor and RGB LED

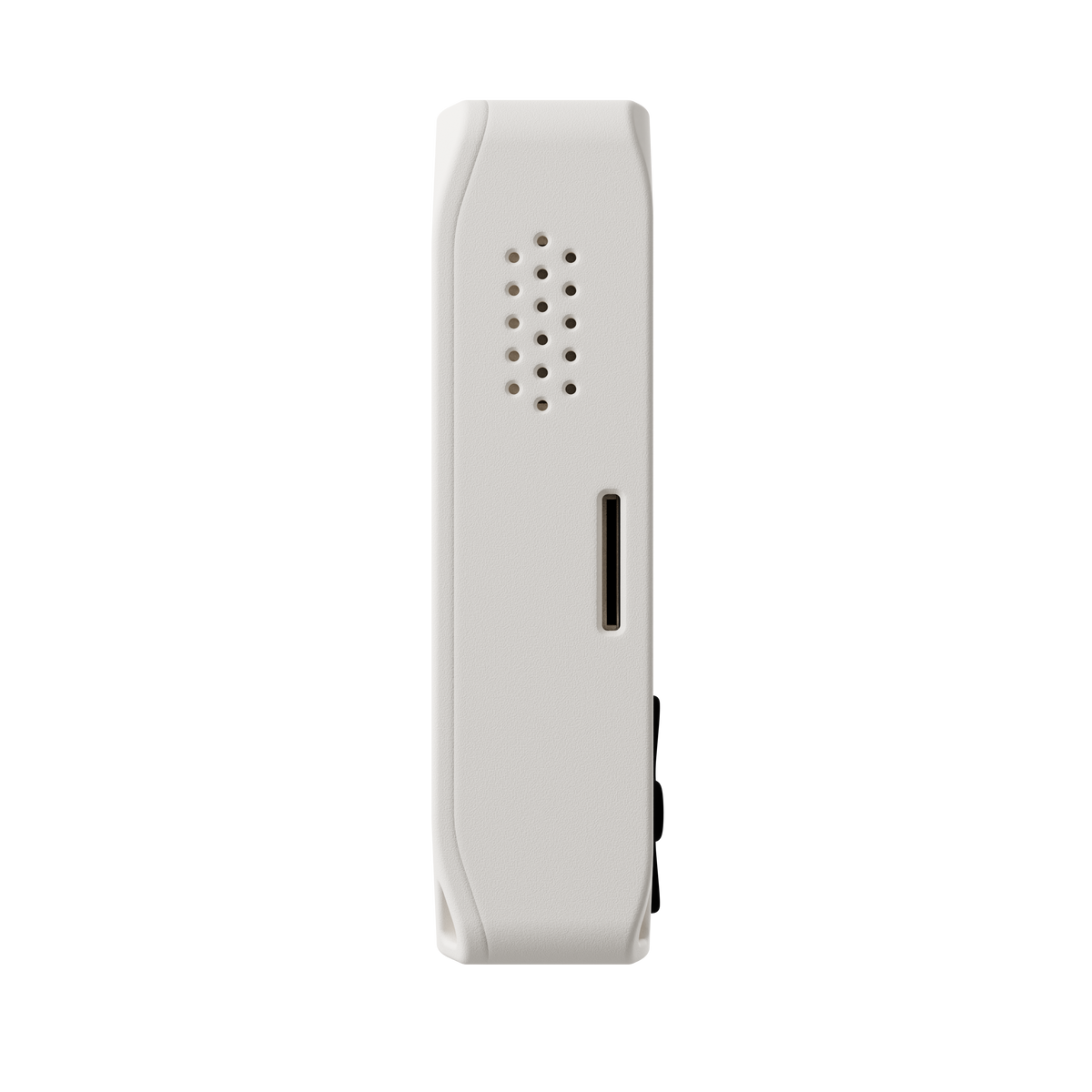

• microSD card slot for storage
• Rechargeable LiPo battery, USB-C with USB OTG

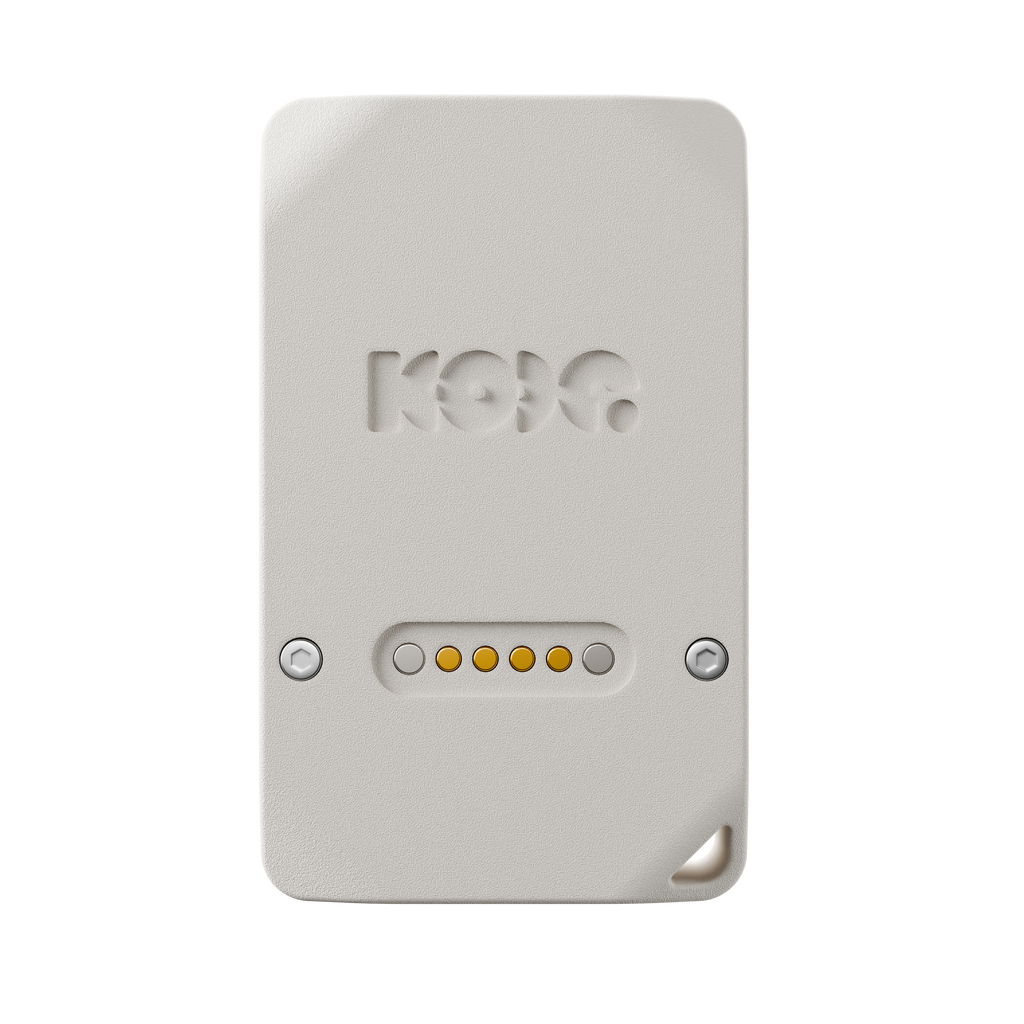

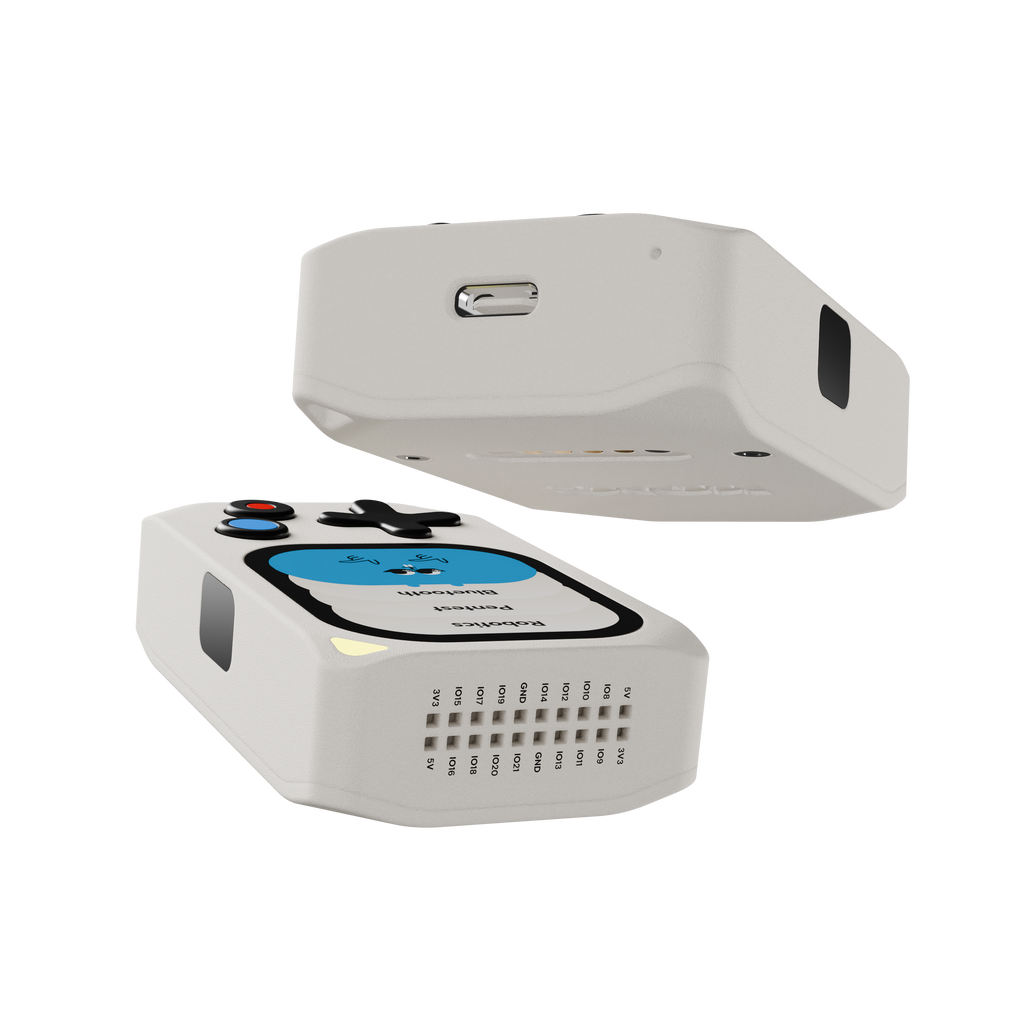

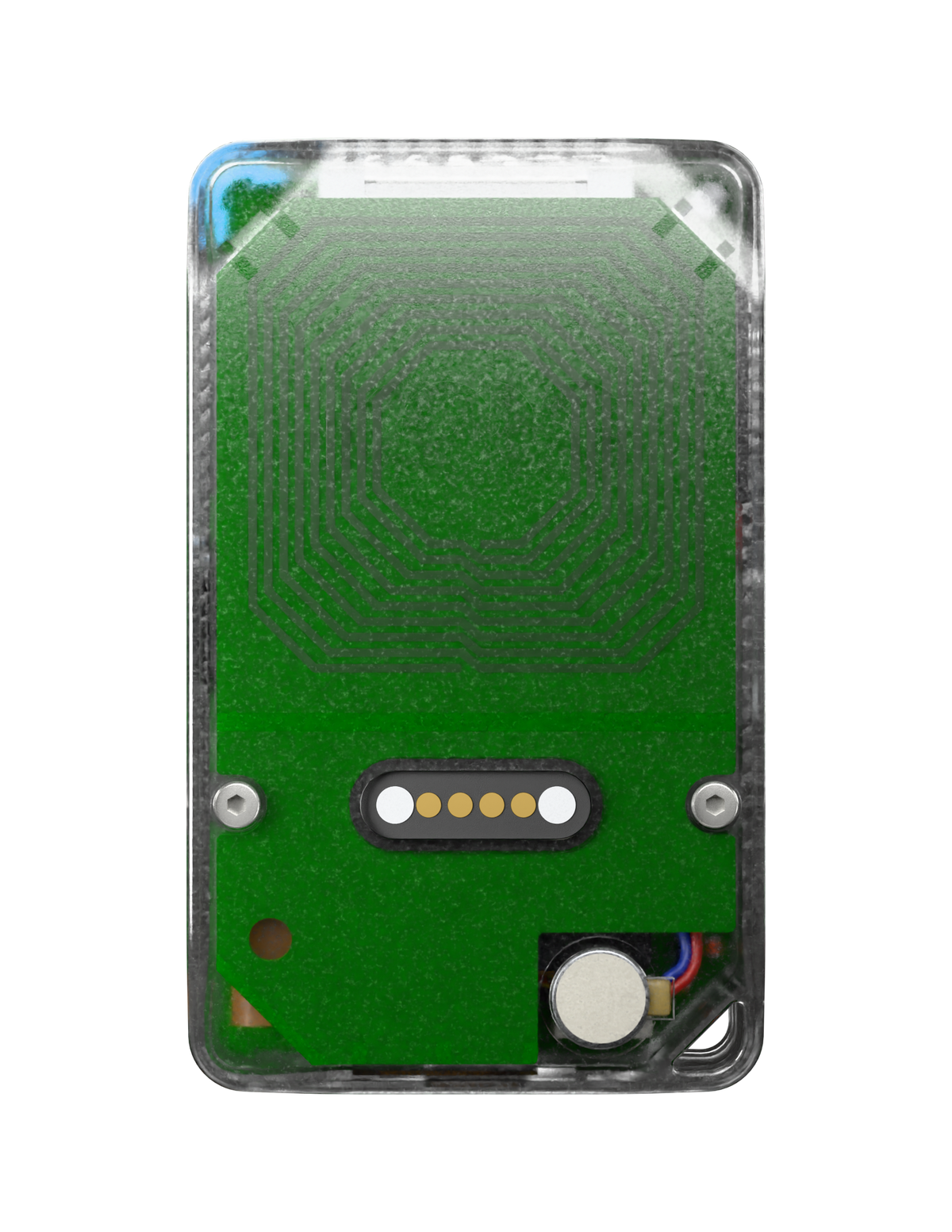

• 20-pin expansion header and rear magnetic connector
