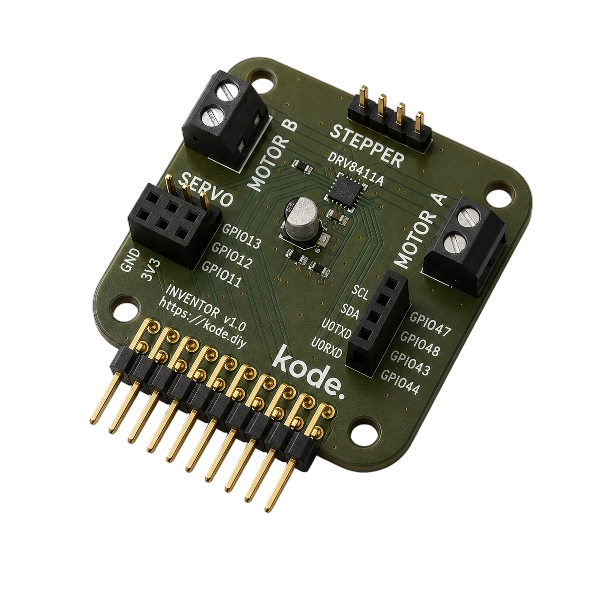

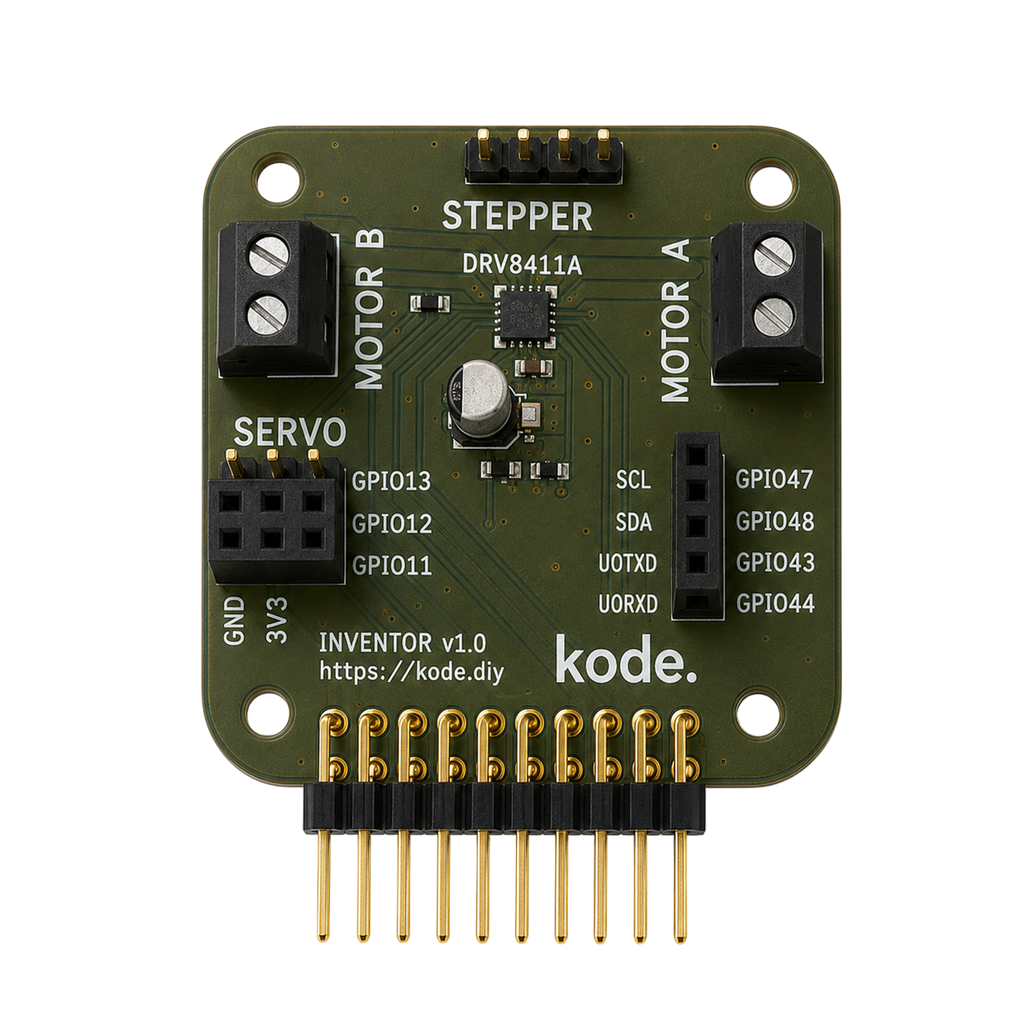

Robotics Module

The Robotics Module turns your Kode Dot into a robotics brain. Snap it on and connect up to two DC motors (or a stepper), a servo, and sensors to build line-following cars, robotic arms, and motion projects of your own design, all powered directly from the Kode Dot with no external supply needed.

With five GPIOs for sensors and an I²C bus on board, it's everything you need to bring your creations to life and program them through KodeOS.

Key specs:

• Drives 2× DC motors (5V, 700 mA each) or 1× stepper motor
• 1× servo motor output
• 5× GPIOs for sensors plus 1× I²C bus
• PWM motor control
• Powered entirely from the Kode Dot, no external supply
